技術參數

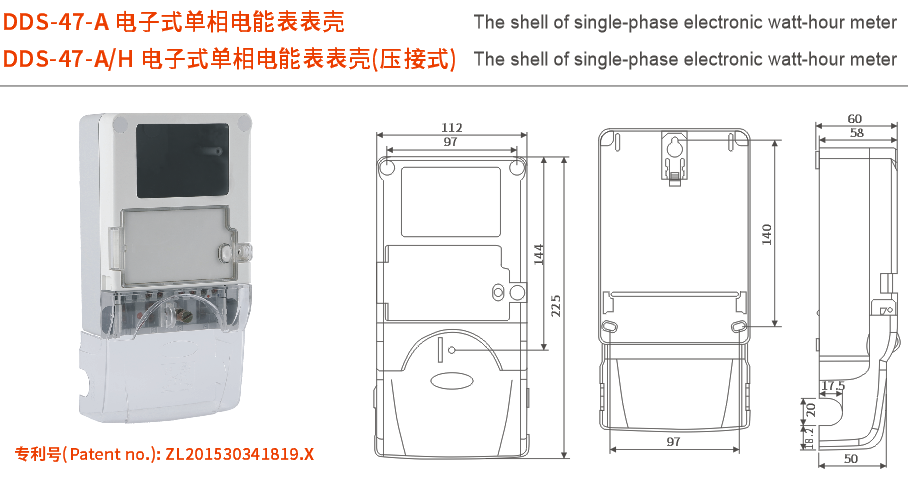

◎規格：端鈕盒銅條，小A(8×10.5)、中A(9×11、10×12)、

   大A(11×13)

◎脈沖信號線：2、4、6、8線或2、4、6、8銅件

◎電流配置：5（30）A帶1-8組輔助端口

                     10（60）A帶1-8組輔助端口

                     20（100）A帶1-8組輔助端口

◎說明：采用國網標準設計，出口型表，端鈕盒外置，可選配多

    種標牌、各種防竊蓋、拆分式端鈕盒，壓接式端鈕盒。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(8×10.5), middle

    A (9×11,10×12),large A(11×13)

◎Pulse signal lines:2,4,6,8 lines or 2,4,6,8 copper pieces

◎Current configuration: 5(30)A with 1-8 sets of auxiliary ports

                                       10(60)A with 1-8 sets of auxiliary ports

                                       20(100)A with 1-8 sets of auxiliary ports

◎Note: it is designed according to standard of state grid, export-type

    meter with external terminal meter, it can choose a variety of signs,

    kinds of anti-theft cover, crimp-type terminal box and split terminal

    box.
